HVAC Solutions for Dyeing Mills: Cracking the Heating & Cooling Dilemma with Water-Source Heat Pumps and Heat Recovery Technology

HVAC Solutions for Dyeing Mills: Cracking the Heating & Cooling Dilemma with Water-Source Heat Pumps and Heat Recovery Technology

As the core segment of the textile supply chain, the printing and dyeing industry encompasses critical processes such as pre-treatment, dyeing, and finishing. Each stage imposes stringent requirements on temperature, humidity, and hot water supply. Facilities face a glaring contradiction: a massive demand for 90-100°C high-temperature hot water for jigger dyeing, continuous bleaching, and drying, paired with an urgent need for workshop cooling during the summer to counteract equipment heat dissipation and ensure safe working conditions.

According to the Design Code for Printing and Dyeing Factories (GB50426-2019), temperature and humidity deviations during the dyeing process must be strictly controlled within ±1°C and ±5% RH. Failure to meet these standards directly results in shade variations, harsh fabric hand-feel, and other critical quality defects.

Traditionally, mills have relied on a fragmented "Boiler for Heating + Standard AC for Cooling" model. This approach not only incurs notoriously high energy consumption and fails to provide precise thermostatic control, but it also allows the massive amount of waste heat trapped in dyeing wastewater to be discharged in vain. Deeply rooted in the industrial HVAC sector, Guangdong Eurasia Refrigeration Equipment Manufacturing Co., Ltd. addresses these exact industry pain points—high heating demand, essential cooling needs, and severe waste heat loss—by deploying our core Water-Source Heat Pump (WSHP) paired with proprietary cascade heat recovery technology.

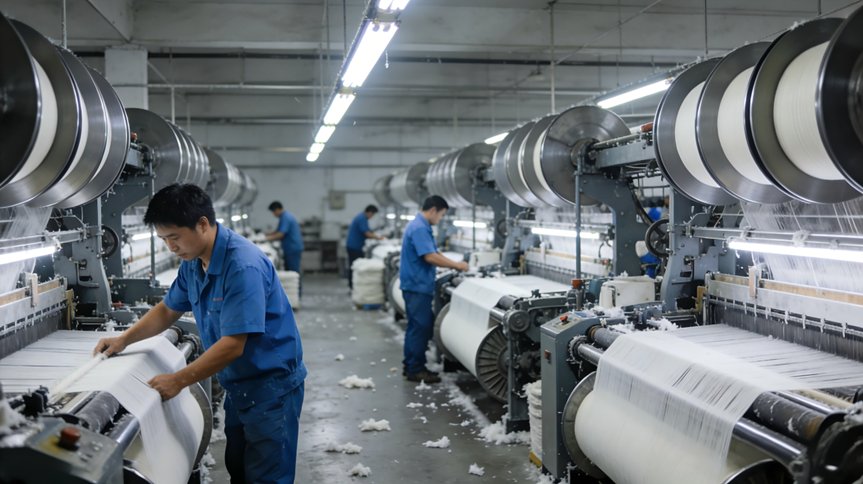

Process Analysis: The Coexistence of Cooling & Heating Demands

The three core processes of textile dyeing—pre-treatment, dyeing, and finishing—have distinct thermal and environmental requirements. However, they all share a consistent demand for heating, coupled with the need for powerful workshop cooling in the summer. This frequent switching between cooling and heating modes demands exceptional adaptability, stability, and precision from the HVAC system.

1.      Pre-treatment: The rigid demand for hot water and precise climate control

•        Pre-treatment includes desizing, scouring, bleaching, and mercerizing. The core requirement here is a continuous supply of 90-100°C hot water to strip sizing agents and impurities from the fabric. For example, a dyeing mill with a daily capacity of 500,000 meters consumes over 260 tons of hot water daily. If traditional boilers are used, fuel costs alone account for over 60% of daily operational expenses. Simultaneously, the workshop must maintain a strict 28-32°C and 60-70% RH. Excessive humidity causes uneven moisture absorption, while low humidity generates static electricity. In summer, supplementary cooling is mandatory.

2.      Dyeing: Precision temperature control and dynamic hot/cold switching

•        Dyeing is the most critical and thermally sensitive stage. Different dyes (reactive, disperse, etc.) require precise temperatures between 60-100°C with an error margin of ≤±1°C. Fluctuations lead to uneven dyeing, color differences, and substandard color fastness, directly resulting in product rejection. Furthermore, the high density of equipment dissipates immense heat, easily pushing summer ambient temperatures above 35°C. This necessitates robust cooling to ensure operator safety and process stability. Conversely, winter requires heating to maintain 25-30°C to prevent poor dye solubility.

3.      Finishing: Massive drying heat demand and high waste heat potential

•        Finishing (stentering, drying, pre-shrinking) relies on continuous high-temperature heating to evaporate moisture and set fabric dimensions and colors, requiring an environment of 120-180°C. This process generates exhaust gases at 60-80°C, while discharged wastewater remains around 60°C. Discharging this low-grade waste heat wastes energy and requires additional cooling costs. According to industry data, 40% of waste heat in the dyeing sector goes unrecovered, costing a mid-sized mill up to 8 million RMB annually.

The Bottlenecks of Traditional HVAC Solutions

The legacy "Boiler + Standard AC" model is fundamentally misaligned with the industry's shift towards green, high-efficiency manufacturing, hindering cost-reduction efforts:

•        Exorbitant Energy & Operational Costs: Heating relies on biomass or electric boilers. A mid-sized mill can consume 5 tons of biomass pellets daily (approx. 7,500 RMB). Standard water-cooled ACs operate at a COP below 2.8, making overall energy consumption 35% higher than modern standards.

•        Poor Precision Impacting Yield: Independent, non-linked boiler and AC systems cause workshop fluctuations of up to ±5°C/±10% RH. This drops the first-grade fabric yield below 90%, skyrocketing rework costs.

•        Severe Waste Heat Pollution: Direct discharge of untreated wastewater and exhaust heat causes thermal pollution in local waterways and the atmosphere, conflicting with National "Dual Carbon" goals and Green Factory certifications.

•        Cumbersome Switching & Poor Reliability: Manual switching between independent heating/cooling systems is slow. In a 24/7 continuous production environment, a single equipment failure can cause tens of thousands of RMB in losses.

•        Large Footprint & High Maintenance: Dispersed layouts of boilers, ACs, and cooling towers waste valuable floor space and require expensive, dedicated maintenance personnel.

The Ouya Refrigeration Solution: WSHP + Heat Recovery

Targeting the core pain points of the dyeing industry, Guangdong Ouya Refrigeration offers a bespoke HVAC solution built around our proprietary Water-Source Heat Pumps and Cascade Heat Recovery technology. This system achieves a three-in-one integration of "Heating, Cooling, and Heat Recovery," fundamentally resolving the drawbacks of traditional setups.

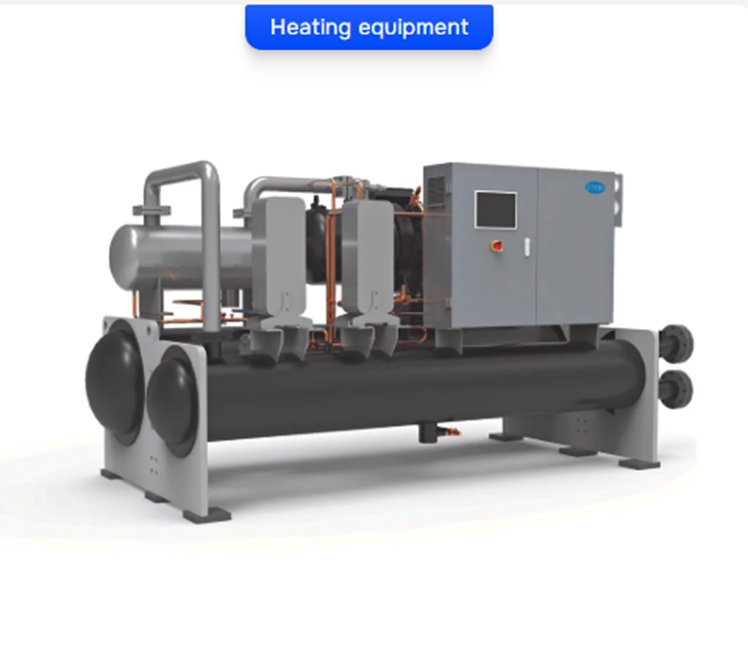

Core Equipment: Water-Source Heat Pump (One Machine, Dual Purpose)

Based on the Reverse Carnot cycle, the Ouya WSHP utilizes a 4-way reversing valve to seamlessly switch refrigerant flow, achieving integrated cooling and heating without separate boilers or AC units.

•        Ultra-High COP for Cost Reduction: Operating with a stable COP of 4.0 to 6.0, the system yields 4-6 units of thermal/cooling energy for every 1 unit of electricity consumed. This saves over 70% energy compared to electric boilers and 50-75% compared to standard ACs. One mid-sized client reported daily savings of over 3,000 RMB, translating to over 900,000 RMB saved annually.

•        24/7 Unwavering Reliability: Utilizing oil-free bearings and high-efficiency heat exchangers, the system boasts an annual failure rate of less than 0.5% and an MTBF (Mean Time Between Failures) of 8,000 hours, perfectly matching continuous production demands.

•        Eco-Friendly Operations: With zero combustion, zero emissions, and no need for cooling towers, the system drastically reduces carbon footprints and noise pollution, helping enterprises seamlessly pass Green Factory audits.

Core Technology: Cascade Heat Recovery for Maximum Energy Circularity

To combat heat waste, Ouya has developed a specialized wastewater heat recovery system that extracts and recycles low-grade thermal energy, achieving a 45% heat recovery rate.

•        Thermal Looping: Recovered waste heat pre-heats 20°C raw water to 35°C. The WSHP then elevates it to 60°C, and an ultra-high-temperature heat pump provides the final lift to 90-100°C, perfectly fulfilling process demands. In winter, this recovered heat is repurposed for workshop heating.

•        Intelligent Linkage Control: The heat recovery system integrates seamlessly with the WSHP and workshop thermostats. It automatically adjusts based on production loads and seasonality—prioritizing waste heat for hot water in the summer to reduce compressor load, and maximizing heat extraction in winter for space heating.

 Empowering the Future of Green Textile Manufacturing

High-quality development in the textile dyeing industry is inseparable from stable, highly efficient HVAC infrastructure. The traditional paradigm is obsolete. The "Water-Source Heat Pump + Heat Recovery" model is definitively the optimal path for resolving the thermal contradictions of dyeing mills.

Leveraging mature application experience and full-lifecycle service, Guangdong Ouya Refrigeration Equipment Manufacturing Co., Ltd. shatters the limitations of legacy systems. By providing a one-stop "Heating, Cooling, and Recovery" solution, we empower textile enterprises to slash operational costs, elevate product quality, and achieve truly sustainable manufacturing. Moving forward, Ouya Refrigeration will continue to innovate alongside the industry's intelligent and green transition, paving the way for a highly efficient future in textile printing and dyeing.
