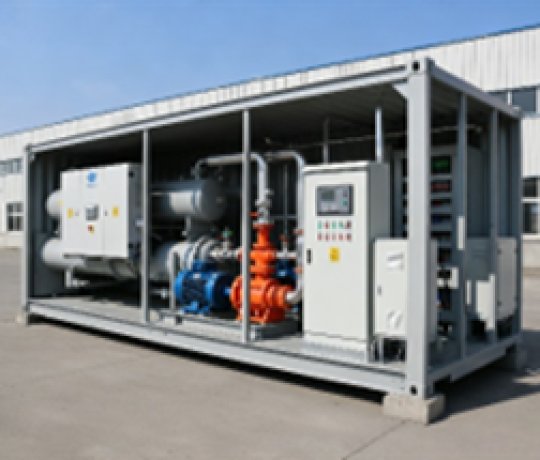

High-integration Moduler HVAC Plant Room for Plastics Manufacturing

Moduler HVAC Plant Room&

Features: Compact design with integrated pump/tank, saves space. R290 eco-friendly refrigerant, fast cooling, reduces energy use. Ideal for small cold storage, food processing, supermarkets, mobile medical vehicles.
Specs: Cooling 10-560kW. Output: Chilled water (-5 to 20°C) or process cooling water.
Benefits: Cuts installation time by 70%, meets community cooling needs.

Inquire now

Apartment

Serviced Apartment

Integrated chiller

OY~Model		G03WF			G05WF			G08WF			G10WF			G12.5WF			G15WF
Refrigerant		R22	R407C	R134a	R22	R407C	R134a	R22	R407C	R134a	R22	R407C	R134a	R22	R407C	R134a	R22	R407C	R134a
Rated Cooling Capacity	×1000kcal/h	8.5	8.1	6.0	14.1	13.4	9.9	20.8	19.8	14.6	27.9	26.5	19.6	34.7	32.9	24.3	43.7	41.5	30.6
	kW	9.9	9.4	6.9	16.4	15.6	11.5	24.2	23.0	17.0	32.5	30.9	22.8	40.3	38.3	28.2	50.8	48.3	35.6
Input power		3.3	3.2	2.4	4.9	4.7	3.5	8.02	7.77	5.83	10.1	9.8	7.5	11.5	11.2	8.4	15.3	14.8	11.1
Comp.Input Power×QTY		2.5	2.4	1.6	4.1	3.9	2.7	6.3	6.0	4.1	7.5	7.2	4.9	8.9	8.5	5.8	11.9	11.4	7.7
Chilled Water Pump Model		1DK-20			1DK-20			GD40-15			GD40-15			GD50-17			GD50-17
Chilled Water Pump Power		0.6			0.6			1.1			1.5			1.5			1.5
Comp.current		6.1	5.8	4.0	9.5	9.0	6.2	15.9	15.1	10.3	20.3	19.3	13.2	22.3	21.2	14.5	29.4	27.9	19.1
Power Supply		3φ-380V-50Hz
Protection Device		Phase Reversion Protection PhaseLack Protection Overload Curent Protection Low&HighPressureProtection LowTemp.Protection WaterFlowProtection
Number Of RefrigerationCircuit		1
Capacity Control		100
Condenser		Ripple Aluminum Finsaround Copper Pipe
Power Input of Fan		0.24			0.24			0.65			1.13			1.13			1.85
Evaporator		Coil type						Shell-and-Tube Type
Water Side max Pressure Mpa		1
Dia.of pipe to Evaporator(inch)		1'			1"			1-1/2"			1-1/2"			2			2"
L/min Chilled Water Flow		28	27	20	47	45	33	69	66	49	93	88	65	116	110	81	146 138 102
Evaporator Water pressure drop		15			17			29			34			40			43
Running noise dB(A)		60	65	55	62	64	57	64	66	59	66	69	61	66	69比 61		68 70 63
Tank Volume		80			80			180			180			180			180
Total Weight		260			300			360			480			550			620
